怎么使用CAD快速看图软件测量带弧度的图形面积？

更新时间：2026-08-19 15:13:43 | 编辑：心偿~ | 信息来源：互联网

　　许多的CAD图形都是带着弧度的，这个时候我们想要测量带有弧度的CAD图形的面积的时候就会有些困难。其实使用CAD快速看图就可以有效的解决这个问题，那么我们要怎么解决呢？下面小编就带着大家一起学习一下吧！

　　操作方法：

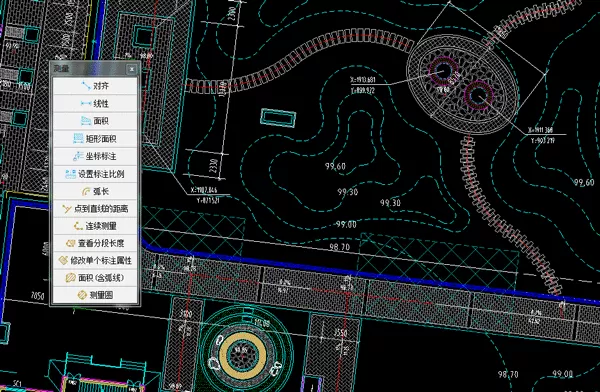

　　1、选择“面积含弧线”功能；

　　2、操作：直线选择两端点；遇到弧线时，鼠标放到弧线上会变成“回”，变了之后直接点击就能选上整根弧线。把图形边线全部勾选完毕，完成闭合就能得到面积数据了。

　　以上就是小编带个大家的全部教程了，希望大家喜欢！
