如何将AutoCAD图纸转换成ppt格式？

更新时间：2026-08-19 03:44:27 | 编辑：念旧 | 信息来源：互联网

  你是否想了解如何将AutoCAD图纸转换成ppt格式?下面就是小编给大家带来的详细完整的内容，赶紧来看一下吧。

  将cad图纸转换成ppt格式的方法一

  第一步，打开要插入的CAD图形，也就是.dwg格式的图形文件。复制要插入的部分图形。

  第二步，打开PPT演示文稿(以office2010版为例)，在功能区点“插入”选项卡，点文本组里面的“对象”。如图所示：

  选中“AutoCAD图形”，如图所示：

  第三步，点确定之后，会加载AutoCAD程序，加载完成后，会出现一个默认的(一般为空白的)CAD图形。暂时把这个CAD文件叫做为Drawing1.dwg。

  第四步，在Drawing1.dwg中粘贴CAD图形，并把需要展现的部分通过放大、缩小和平移放到屏幕正中。如图所示：

  第五步，在AutoCAD中，点菜单栏中的“文件”，点“更新MicrosoftPowerPoint ”。如图所示：

  第六步，返回到PPT，此时可以在PPT中看到CAD图形了。适当调一下大小和位置，就大功告成了!如图所示：

  将cad图纸转换成ppt格式的方法二

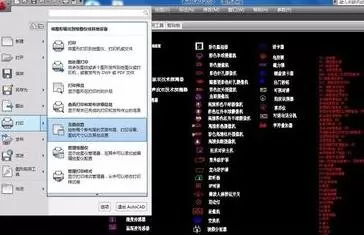

  打开CAD图纸，首先进行图纸打印区域设置，具体步骤如下

  进行上述操作后，点击保存并关闭本项CAD文件

  接下来，打开我们的PPT演示文稿，在插入菜单下，选择对象菜单，这是会出现一个对话框，在对话框中选择由文件创建，并通过浏览选择所需文件

  进行上述操作后，点击确定，关闭插入对象对话框，然后PPT文稿中会出现我们所需的CAD内容

  有时候插入的对象在PPT文稿中偏大偏小，这是我们可以通过双击插入的CAD图进入CAD中去调整文档的显示状态，调整完毕后，保存文档

  以上就是如何将AutoCAD图纸转换成ppt格式的全部内容了，大家都学会了吗?
